Carbon Steel

East Coast Pipe & Fittings Ltd holds a large stock of carbon steel fittings and line pipe, at our warehouse in Great Yarmouth. Anything we don’t have, we can get to you as quick as next day! NATIONWIDE DELIVERY.

Seamless Carbon Steel Linepipe

ASTM/ASME SA106 Grade B/ASTM/ASME SA333 Grade 6, X52 in:

Sch 10 (from 14″ and above), Sch 20 (from 8″ and above), Std Wt/Sch 40, XS/Sch 80, Sch 120 (from 4″ and above), Sch 160 and XXS

Pipe diameter ranges from 1/2″ to 24″. ECPF can also offer larger diameter pipes from 24″ and above when specially requested.

Forged Carbon Steel Flanges

ASTM/ASME SA105N and ASTM/ASME SA350 Grade LF2, ANSI B16.5 in:

ASA 150, 300, 600, 900, 1500 and 2500. Also, EN1092-1 PN6, PN10, PN16, PN25, PN40, PN63 and BS10 Table D and E in A105N, LF2 and S235JR.

Available as Slip On, Weld Neck, Socket Weld, Screwed BSP and NPT, and Blind flanges. We can also offer tongue and groove flanges, a various range of stainless steel flanges, JIS spec and on request other exotic materials.

Carbon Steel Butt Weld Fittings

ASTM/ASME SA234 WPB and ASTM/ASME SA420 WPL6, ANSI B16.9 in:

Sch 20 (from 8″ and above), Std Wt/Sch 40, XS/Sch 80, Sch 120 (from 4″ and above), Sch 160 and XXS.

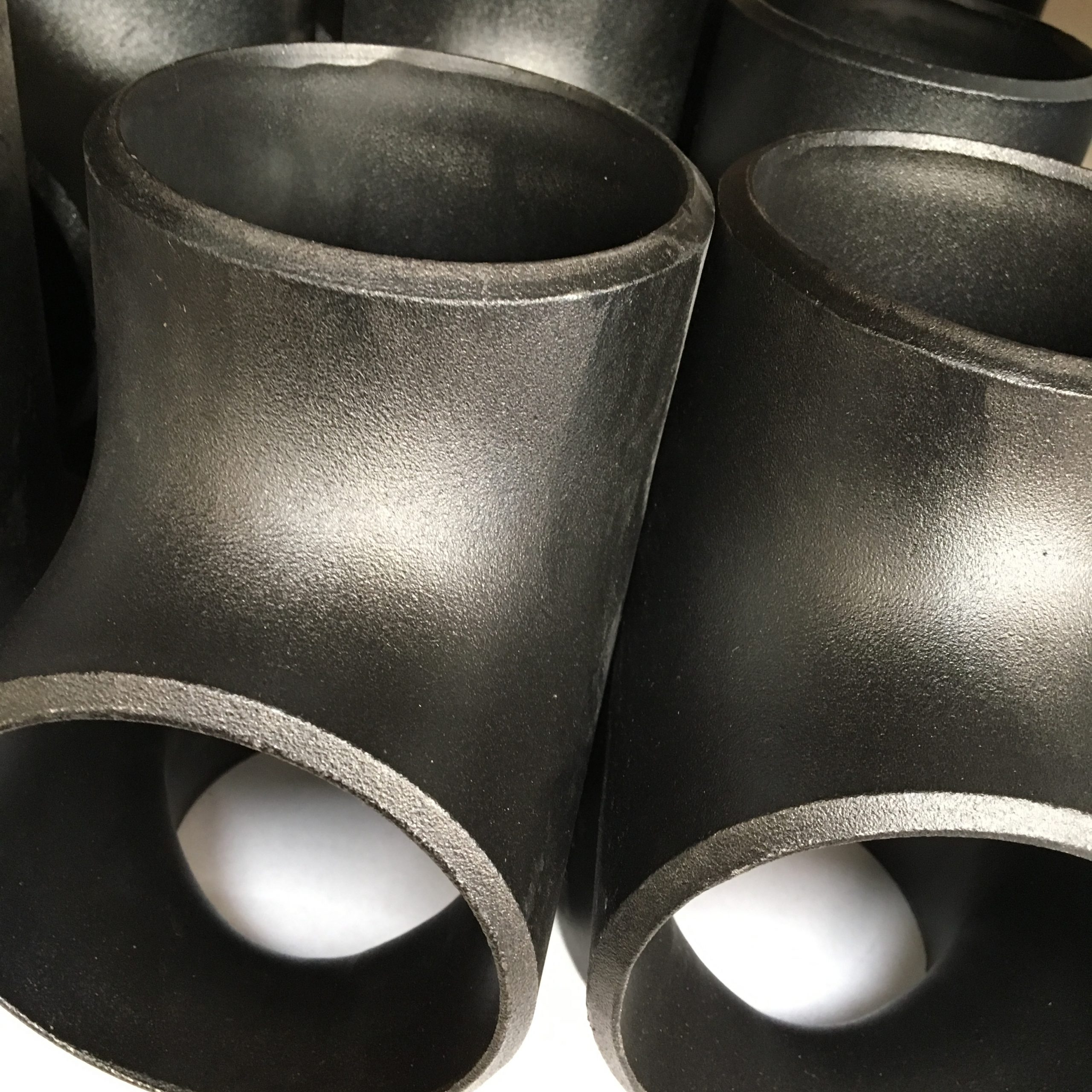

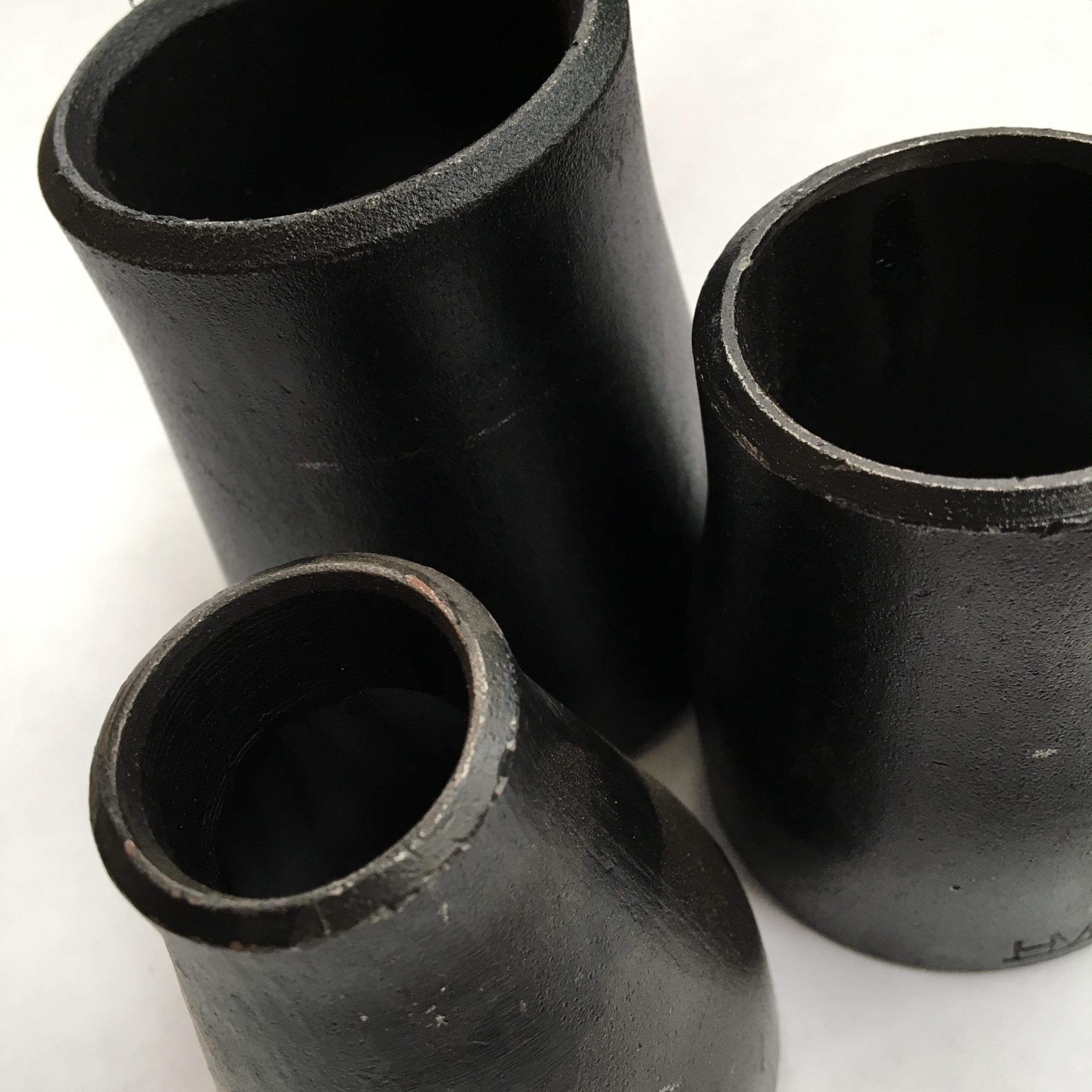

Available as 45/90 degree Long/Short radius Elbows, Equal/Reducing Tees, End caps, Concentric/Eccentric Reducers and Long Radius Return Bends.

Fittings diameter ranges from 1/2″ to 24″. Larger can be offered on request.

Forged Carbon Steel Fittings

ASTM/ASME SA105 and ASTM/ASME SA350 Grade LF2, ANSI B16.11/BS3799 in:

3000 and 6000, Screwed NPT or BSP, Socket Weld, Self-Colour and HDG.

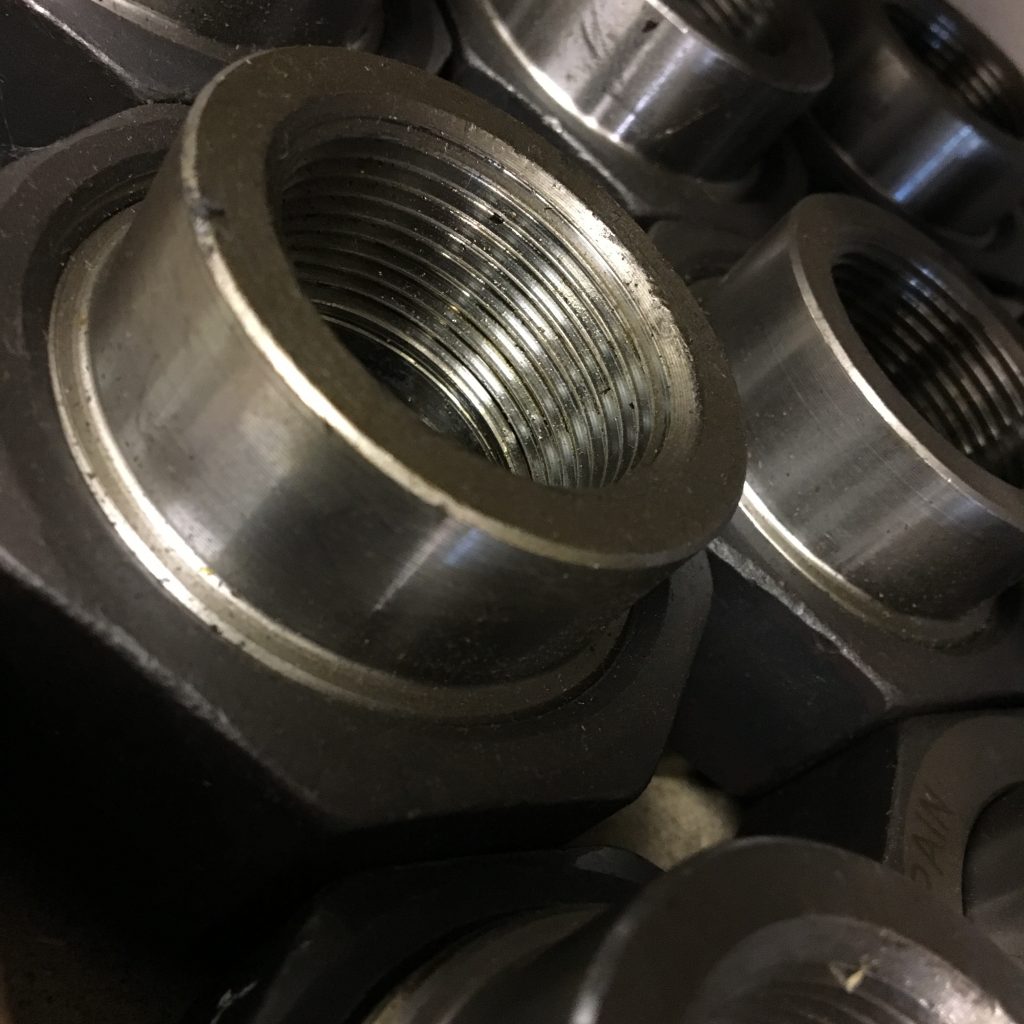

Available as 45/90 degree Elbows, Half/Full/Reducing Couplings, Equal/Reducing Tees, Hex Bushes, Male/Female Elbows and Unions, Equal/Reducing Hex Nipples, Hex/Round Head Plugs, Crosses, End Caps, Barrel/Weld Nipples, Concentric Swage Nipples, Reducing Inserts.

Fittings diameter range from 1/8″ to 4″. ECPF can also supply custom fittings and adaptors E.g BSP x NPT.

Thread-o-lets and Other

Thread-o-lets and all other varieties of “O-lets” are available excluding Sweep-o-lets. Materials available from A105/LF2, right through all the stainless, Duplex, Super Duplex, Brass, Alu Bronze and Nickel Alloys.

ECPF can have manufactured all the way up to a 36″ diameter.

Steel tube – EN10255/10217 (BS1387)

All steel tube is British standard, dual certified and CE marked and CPD/ PED compliant.

Size: DN8 – DN150, Connection: Plain (P/E) or Screwed and Socket (S&S), Length: 6.4m, Finish: Red Oxide, Galvanised or Self Colour, Weight: Medium or Heavy.

Hand Rail System

A full range of Interclamp fittings are available to offer

Size: From Size A (20mm/ 3/4″) to Size E (50mm/ 2″), Finish: Galvanised (other finishes available to order), Connection: Allen Key.

JIS Spec

ECPF can also offer Japanese (JIS) spec flanges and valves on request.

Valves

Ball, Butterly, Gate, Check, Globe, Flanged, Screwed NPT or BSP, Press-fit and Socket Weld.

Manufactured from Brass, Bronze, Cast Iron, Stainless Steel and Carbon Steel.

Available in sizes rom 1/4″ to 24″ on selected items.
